Regular price
$199.00
Sale price
$199.00

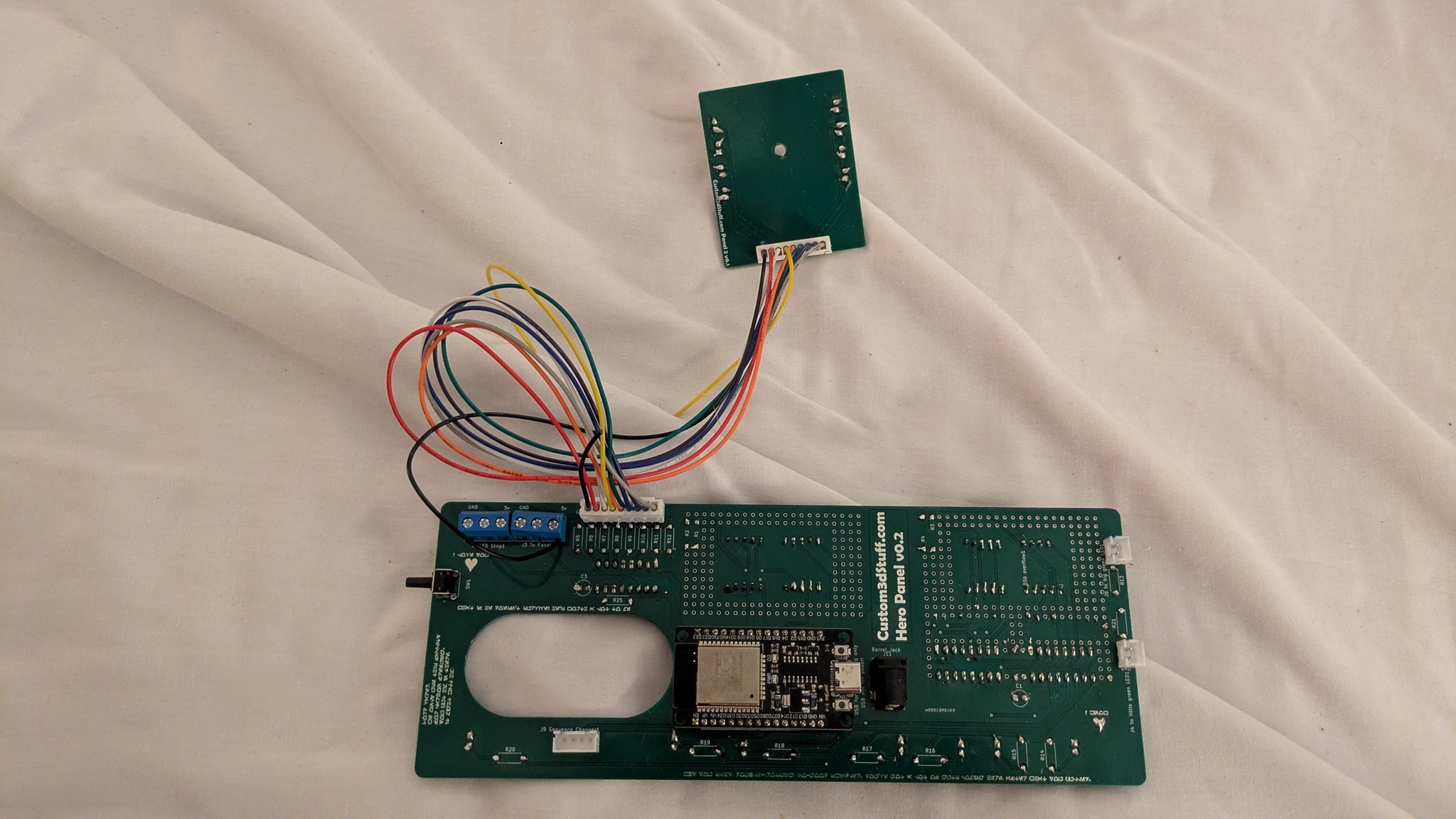

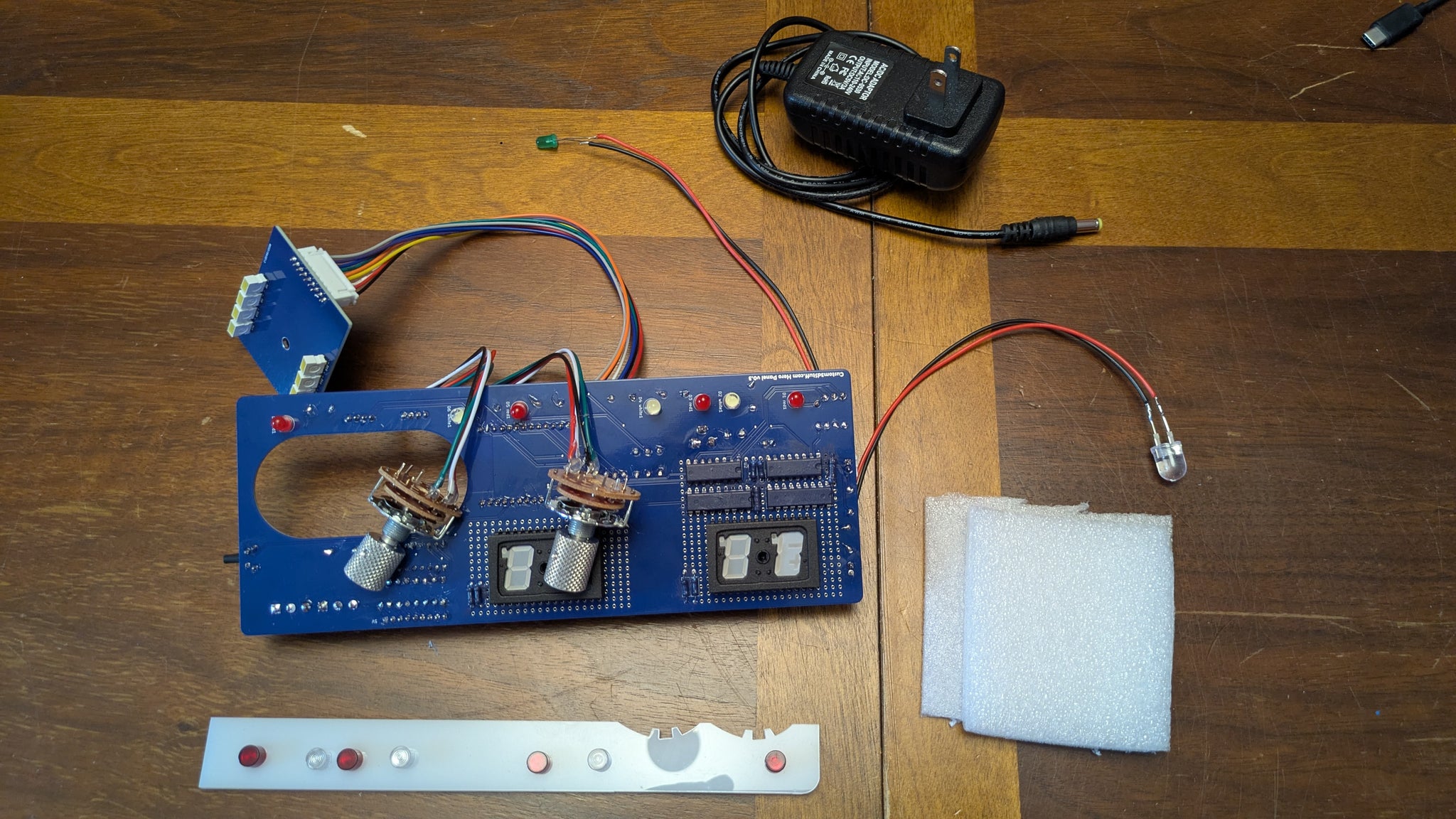

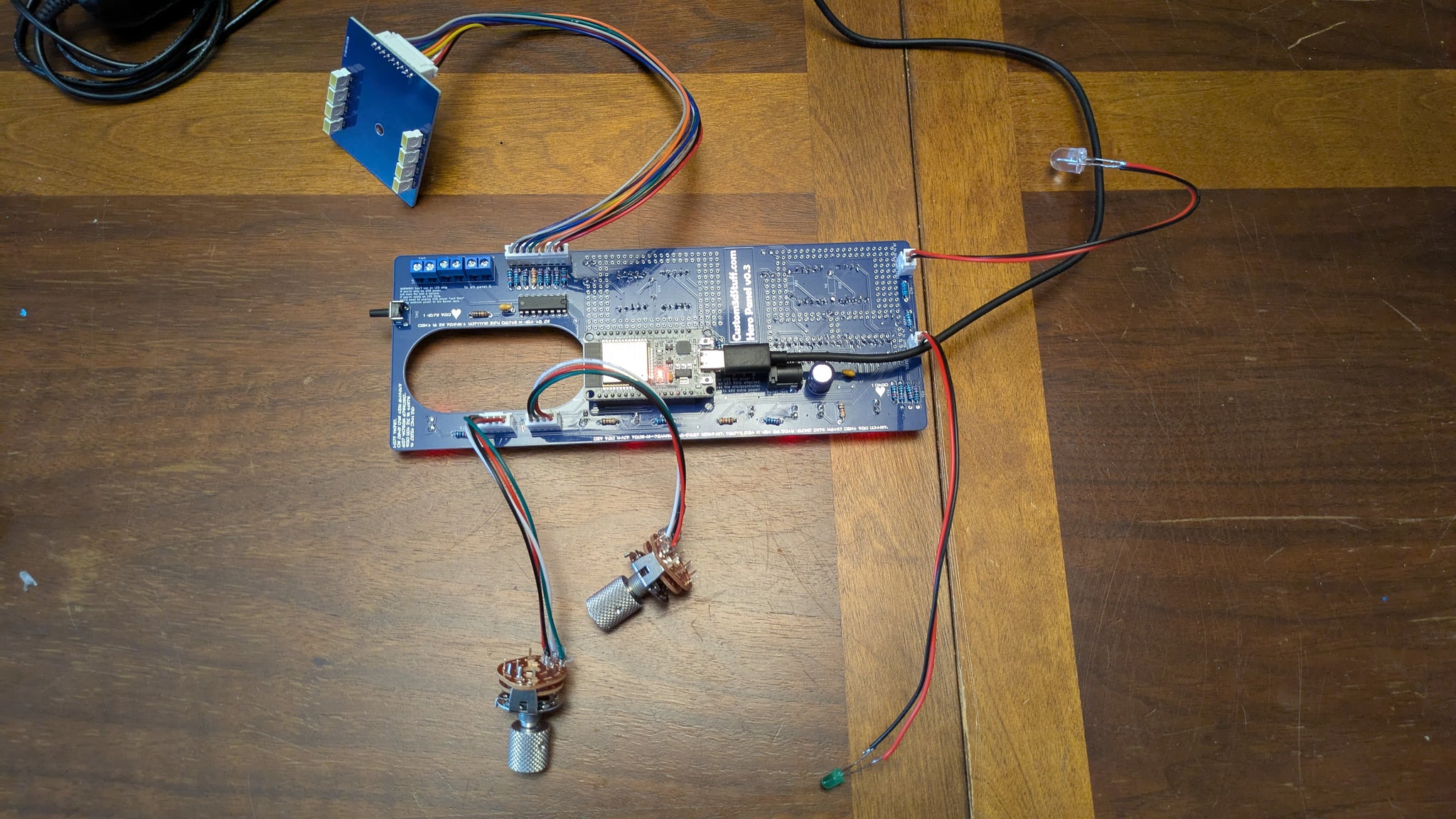

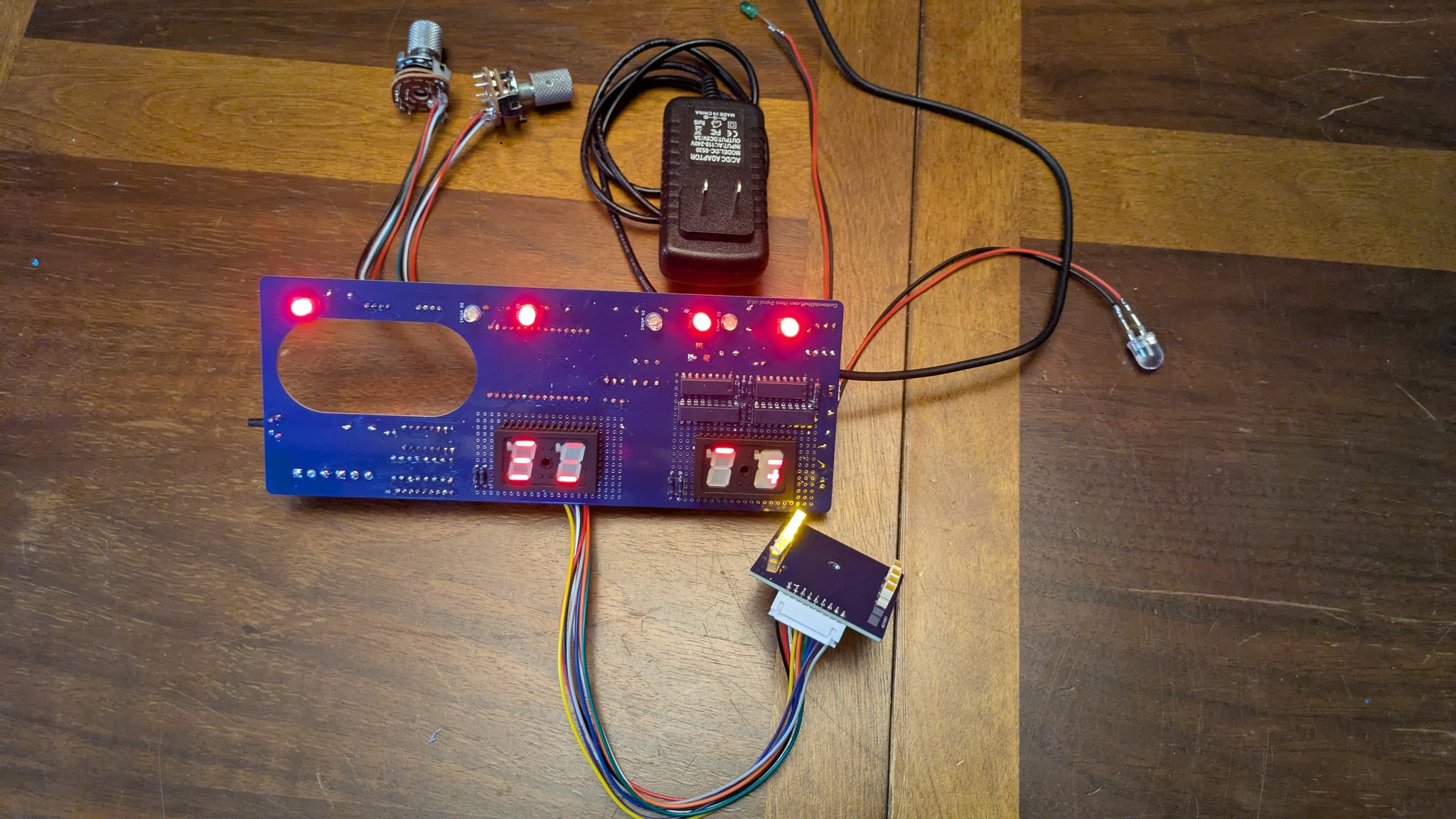

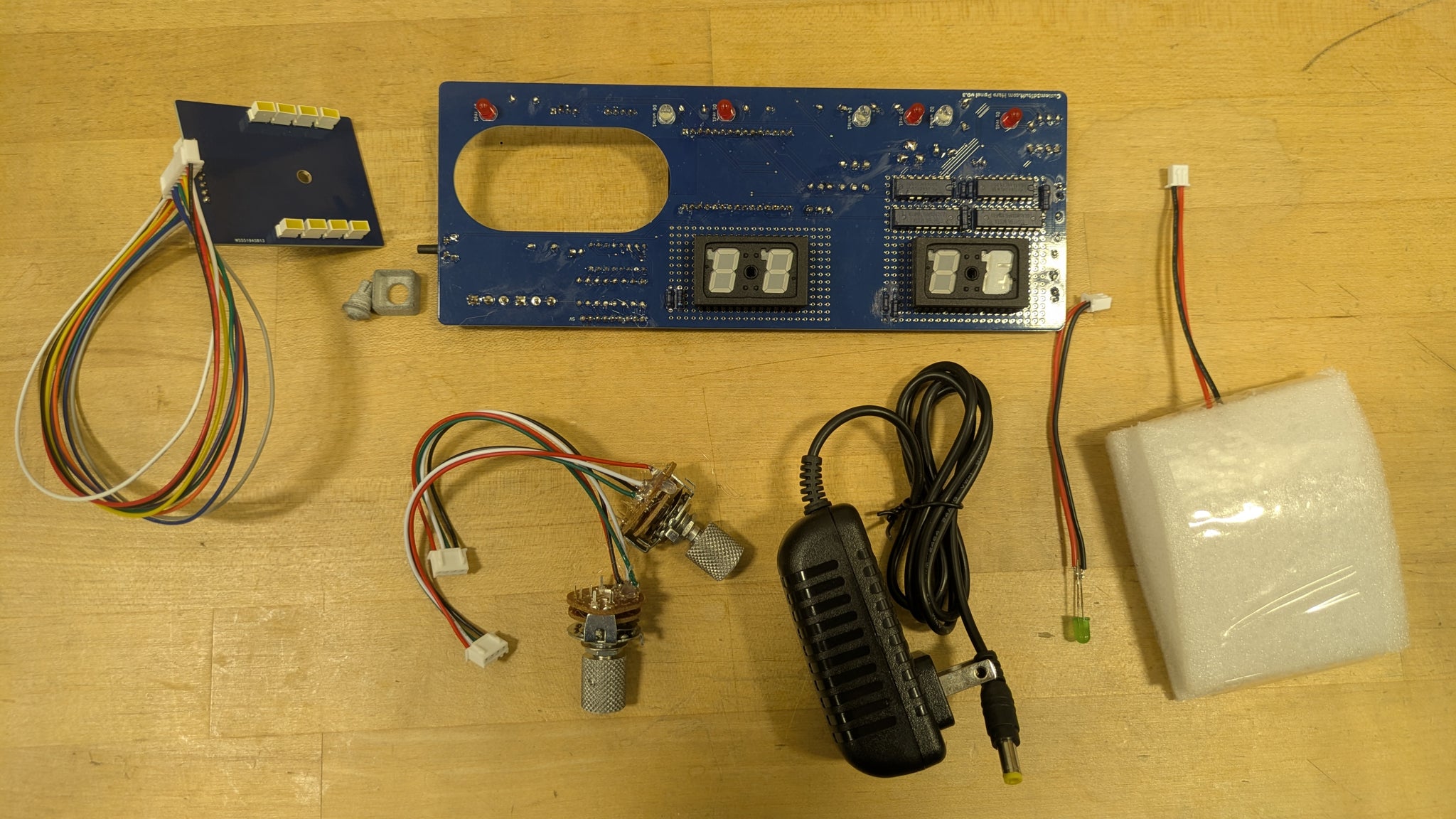

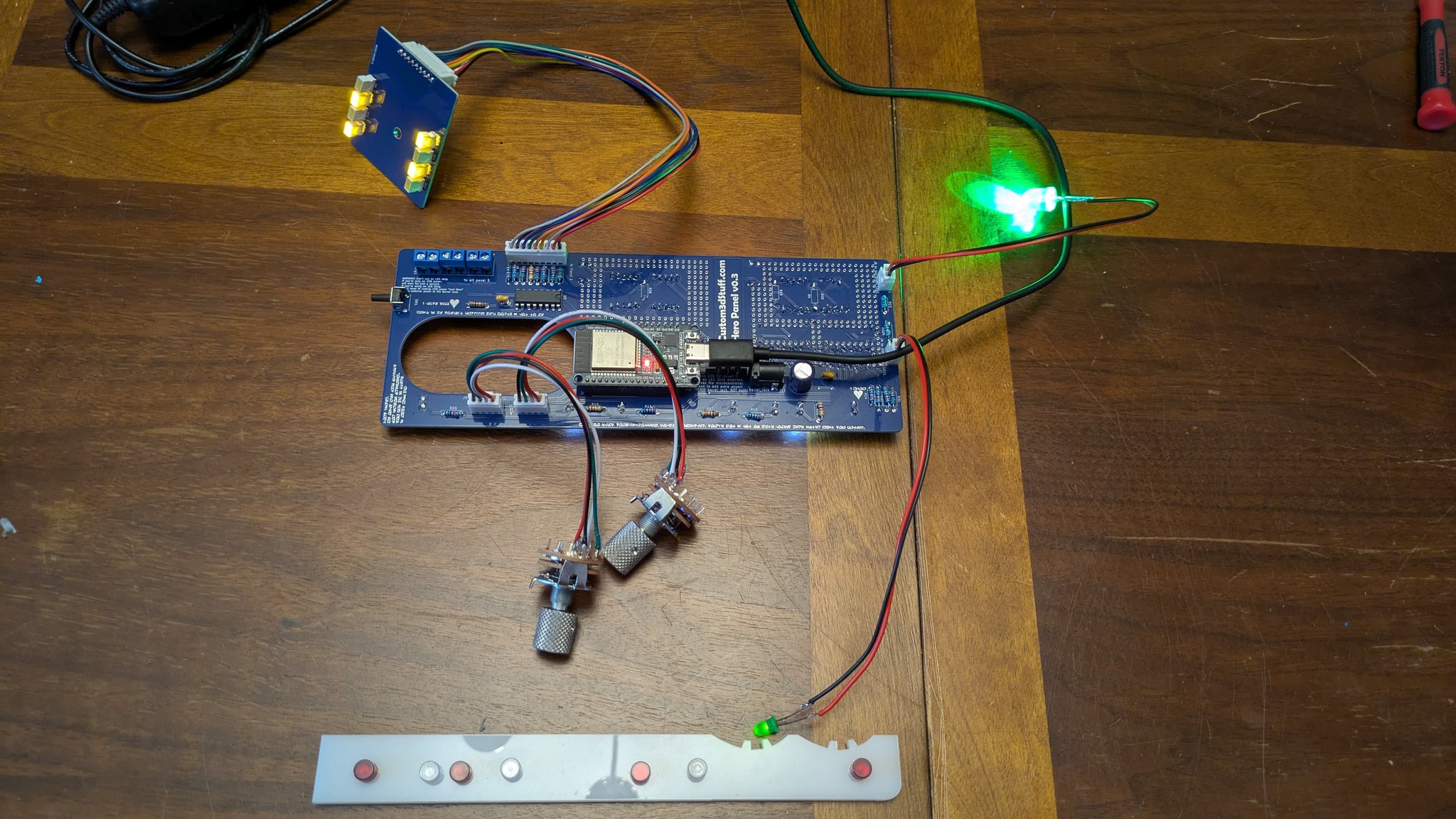

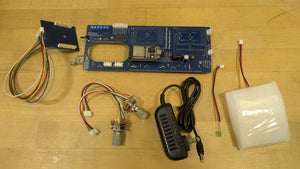

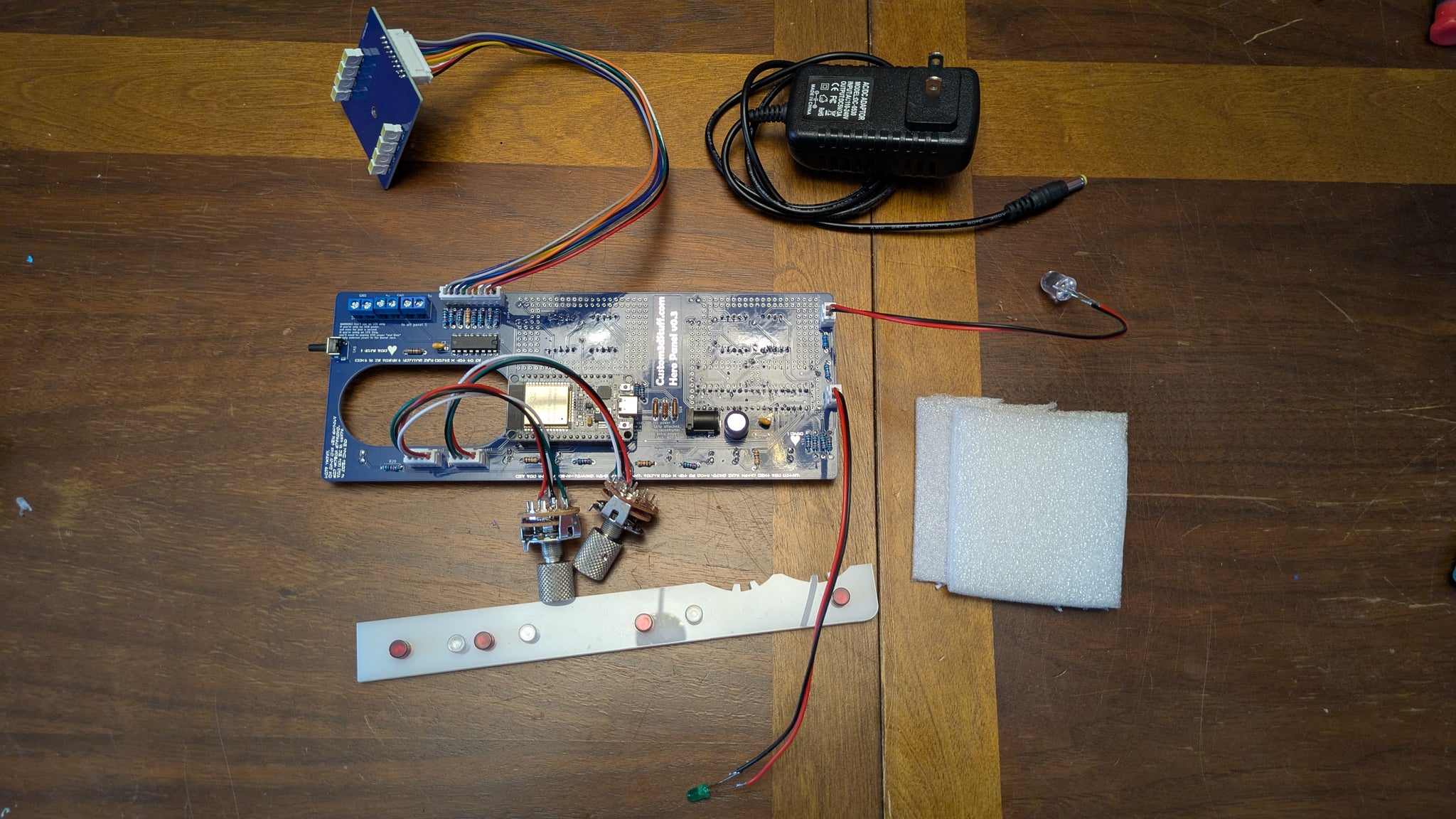

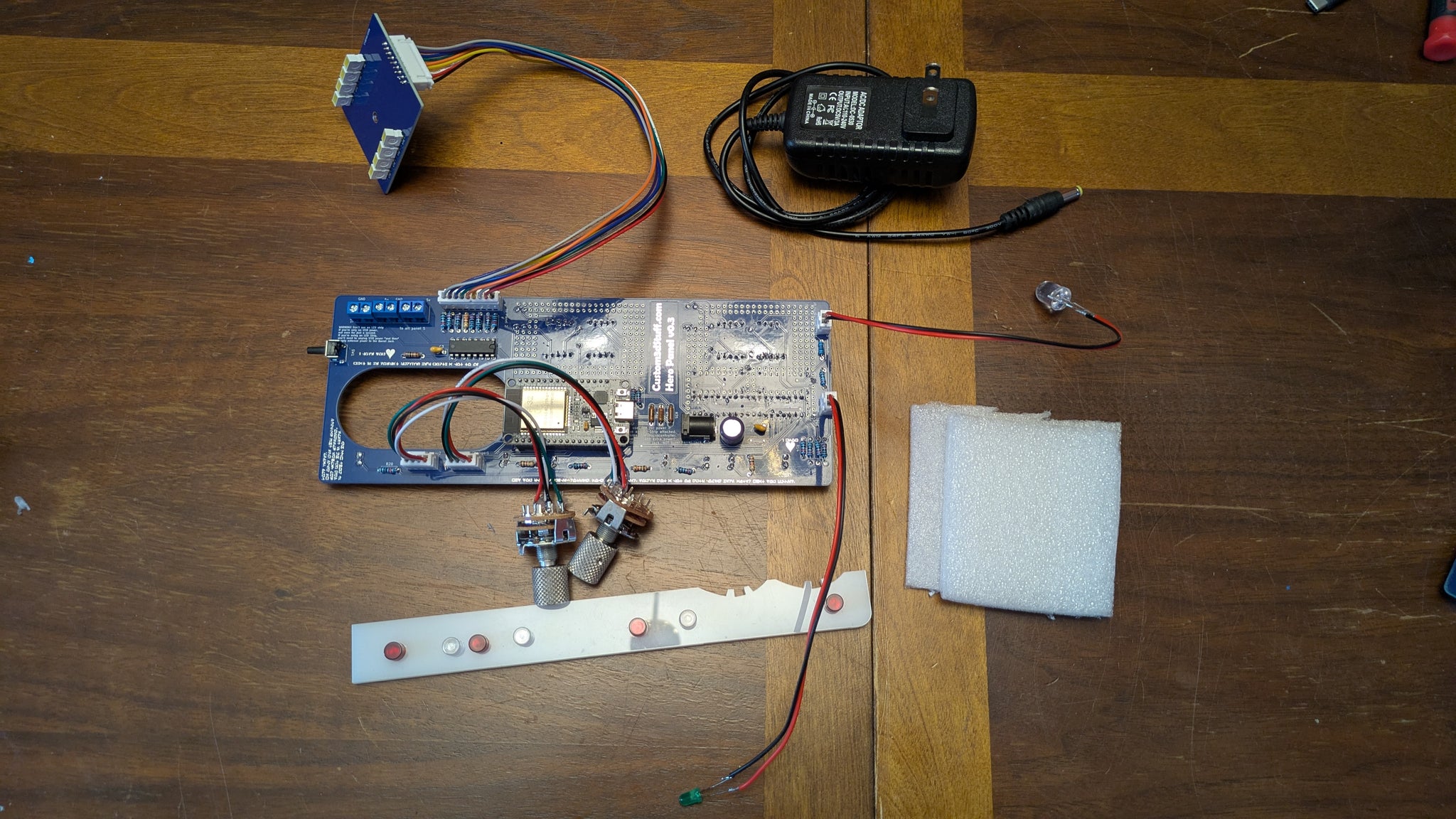

You are ordering one of the first v0.3 electronics boards, fully assembled.

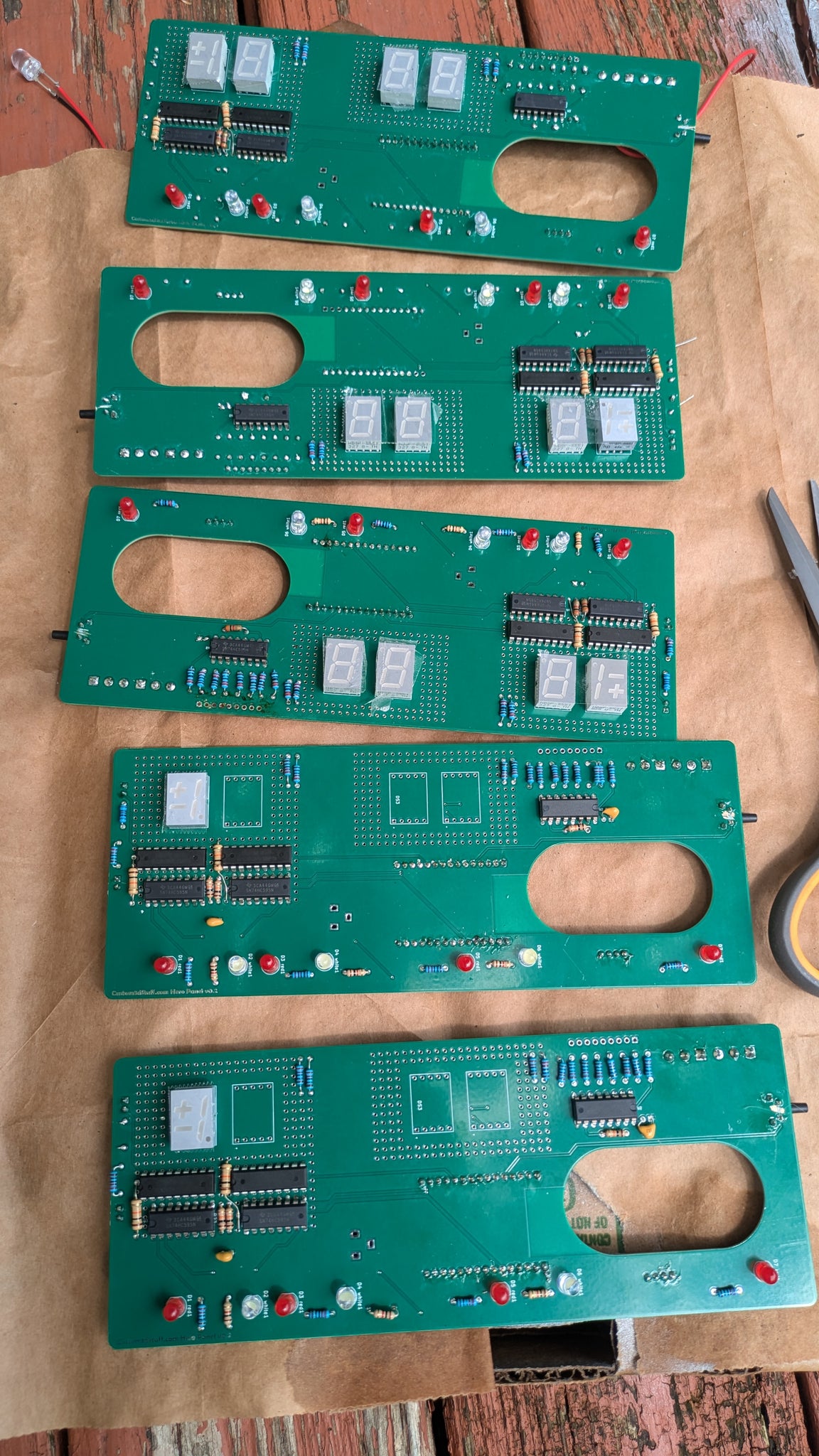

These are hand soldered and hand assembled here in Baltimore.

Features include:

  • 7 on board LEDs with panel mount diffusers

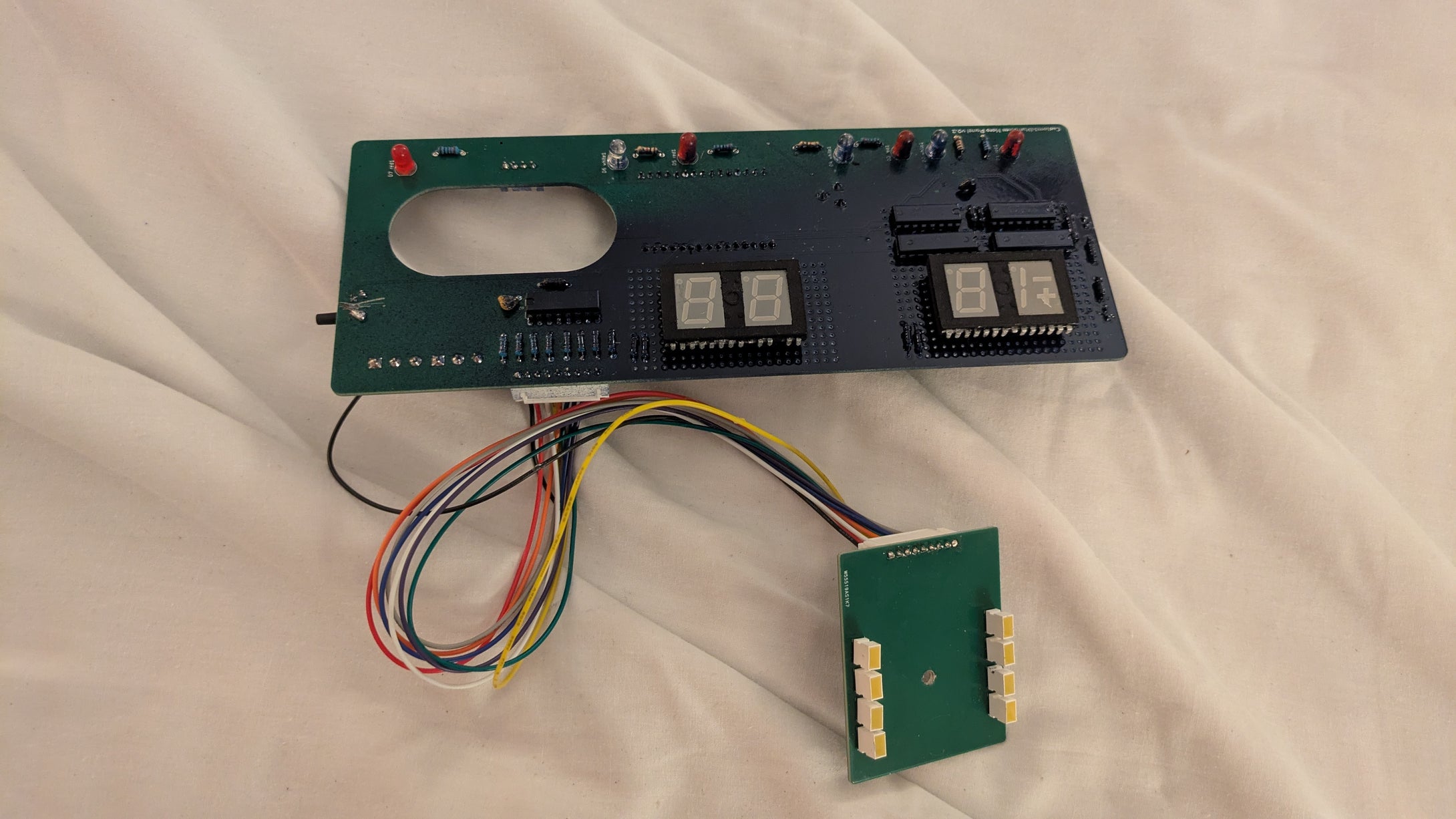

  • 3 7-segmented displays and one +/- overflow display
  • 2 green LEDs for main large display and small hole
  • Accurate sequences and timing
  • Actually functioning IC chips and resistors viewable next to 7 segment displays
  • Changeable sequences through knobs or Wi-Fi phone app.
  • Machined metal knurled knobs Mitchel replica knobs included
  • Functioning side greeblie button
  • Wi-Fi option change patterns from phone
  • Second board and cable with yellow LEDs to connect to panel 2
  • Port for optional panel 5 green light blink expansion (led and wires not supplied)
  • Port for optional led strip control for thawing or accent lighting (led strip not supplied)
  • 5v power supply, or feel free to use your own USB-C *if you're not attaching an LED strip* for thaw/accent lighting. I tried to make it so you didn't accidentally put in both a USB and a power supply by making the ports face each other, so it's intentionally awkward but you have to thread the cable underneath the microcontroller to get to the power jack. This is to try and prevent you from making a mistake of putting USB and Jack at the same time.

Join the Wi-Fi network the control board makes when it's powered on called HiC Control using the password "carbonite" then use a web browser to navigate to to 192.168.4.1 to access the remote control panel and change sequences from your phone
